Transducer Protector

Transducer Protector are used in connected with blood tubing and dialysis machine.

We offer a comprehensive selection of Transducer Protector, ranging from Male/Female Luer Lock, to Luer Slip and Tubing Port (Inlet ID 5.2mm & 5.4mm) connector. Available in different colors, tube fitment sizes and more.

Our automated assembly technology performs a 100% in-process testing for membrane integrity and air tightness of welding.

Transducer Protector Valueplus Materials Inc



Product Type

Transducer Protector-Luer Lock-Transparent

Luer Lock Type

Click here to see coloured Type

Transducer Protector

Luer Lock /Tubing Port Type

Click here to see coloured Type

Transducer Protector-Luer Slip-Transparent

Luer Slip Type

Click here to see coloured Type

Transducer Protector

Luer Slip /Tubing Port Type

Click here to see coloured Type

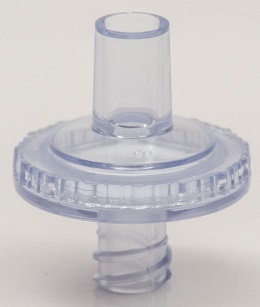

Transducer Protector

Tubing Port / Female Luer Lock Type

Click here to see coloured Type

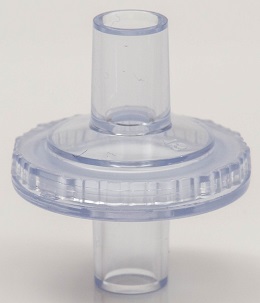

Transducer Protector

Tubing Port Type

Click here to see coloured Type

Product Features

  • Effective antibacterial hydrophobic air filter only allows air to pass through, preventing cross-contamination, and protects patients and equipment

  • 100% in-process testing. (membrane integrity, air tightness of welding)

  • Easy to connect and disconnect from the dialysis machine.

  • Available to connect snap off part on Tubing port series product.

  • Colored housings available for identification and assure safety

  • Certified biocompatibility

Specifications

Filter media

Hydrophobic PTFE membrane (Pore Size:0.2 μm)

Housing

Medical grade PVC (Non-phthalates series)

Minimum Water Breakthrough

1.5bar

Inlet/Outlet Connections

Male/Female Luer Lock、Male/Female Luer Slip、Tubing Port (All Luers conform to ISO 80369-7)

Sterilization Compatibility

Ethylene Oxide (EtO)

Biocompatibility

In vitro Cytotoxicity

Intracutaneous Irritation

Skin Sensitization

Acute Intravenous

Acute Intraperitoneal
